Talking about the hero behind the speaker - the crossover
If the speaker unit is the soul of the audio system, then the crossover is its lifeblood. The crossover plays a crucial role by splitting the full-range audio signal into specific frequency bands—such as high, mid, and low frequencies—and sending each to the appropriate driver. This ensures that each speaker unit only handles the range it's best suited for, optimizing sound quality and performance. In speaker design, the crossover is not just a component—it's a true test of a designer's expertise. Many renowned speaker engineers are recognized for their mastery in crossover theory and implementation, as the final tuning of a speaker often relies heavily on the crossover’s design. It reflects the designer's personal philosophy of sound, making it one of the most important elements behind every great speaker.
Today, we’ll take a closer look at this unsung hero—the crossover—and explore how it shapes the listening experience.
The crossover can be categorized based on the number of frequency bands it divides the audio signal into. A two-way crossover separates the signal into high and low frequencies, while a three-way splits it into high, mid, and low. A four-way crossover adds an ultra-low frequency band. Crossovers can also be classified as either passive or active.

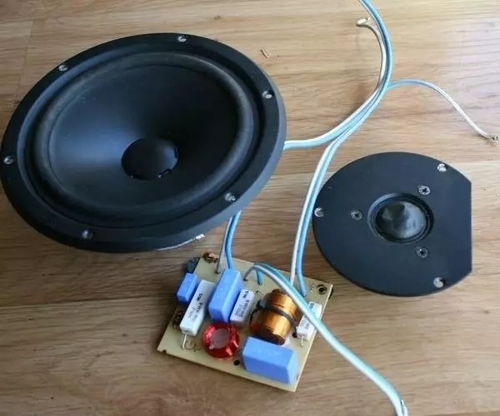

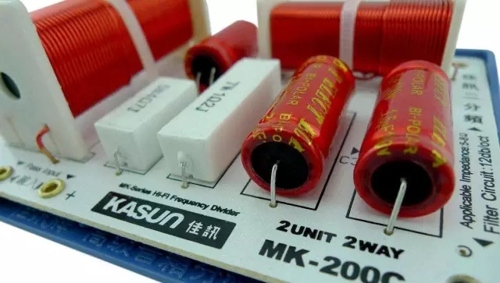

A **passive crossover** is the most common type. It is built into the speaker and works after the power amplifier. It uses components like capacitors and inductors to filter the audio signal and send the correct frequencies to the respective drivers. Passive crossovers are simple to use and connect, but they have some limitations. They consume power, can cause distortion, and are sensitive to changes in speaker impedance, which varies with frequency. This makes them less precise compared to other types.
An **active crossover**, on the other hand, is used in more advanced systems. It is placed before the power amplifier and splits the signal at a pre-amplification level. Each frequency band is then amplified separately using individual amplifiers. This approach reduces power loss, minimizes interference between drivers, and allows for more precise control over the sound. Active crossovers are commonly found in high-end audio systems and professional sound setups due to their superior performance, though they come with higher costs and complexity.
Crossovers can also vary in complexity based on the filter order. A first-order crossover has a gentle roll-off slope of 6dB per octave, while a second-order crossover offers a steeper slope of 12dB per octave. Higher-order crossovers, such as third and fourth-order, provide even steeper slopes (18dB and 24dB per octave, respectively). However, higher-order designs require more components and careful matching with the drivers and cabinet. Typically, woofers use first-order crossovers for smoother transitions, while midrange and tweeters benefit from higher-order filters for better clarity and separation.
In summary, understanding the crossover is essential for any audiophile. While a basic knowledge is sufficient for most listeners, those interested in DIY projects or custom speaker builds need to dive deeper into the technical aspects. Designing a crossover requires not only theoretical knowledge but also practical experience, as it directly impacts the sound quality and performance of the entire system. Whether passive or active, simple or complex, the crossover remains a vital part of the audio journey.
