Just want a stable router, NETGEAR R7000P out of the box to share experience

Go straight to the point: First, why not buy expensive routers?

In life, I'm still relatively economized, so I've used more routers than before, but it's a couple of hundred Mercury, Netcore, and the most common TP-LINK. It's not that the routers of these brands are not good, just now. The demand has become higher. Today's computers, tablets, smart TVs, and many smart devices require networking, and entry-level routers are often difficult to achieve long-term stable operation. In particular, the popularity of the mobile Internet, mobile phones have become the most important current Internet devices, who do not have three or five smart phones in use. Do not underestimate the ability of mobile phones to consume network resources. The network bandwidth it occupies can be quite a bit, along with the richness of multimedia resources, such as live, video, WeChat, Weibo, and so on. APP is not the master of provincial traffic. Therefore, there is not a wireless router with good controllability in the home. Everyone only needs to look at each other at a critical moment when the network needs to be stable.

Nonsense said a lot, is nothing more than to give yourself an excuses to buy, buy, buy, buy, buy, the key is so that you can find Queen adults to the budget is not. In the end, it started with the Netgear R7000P, a Netgear series of wireless routers. Why should you choose it? This can only blame Zhang Aunt this platform. Before I always wanted to change a wireless router, so I read a lot of original manuscripts on Aunt Zhang’s platform. From introductory-level unpacking to deep-gauge “gaojie20,” the kind of in-depth evaluation has also seen. Anyway, I’m a Money-saving people. Finally decided to choose the newly-listed NETGEAR R7000 upgrade R7000P.

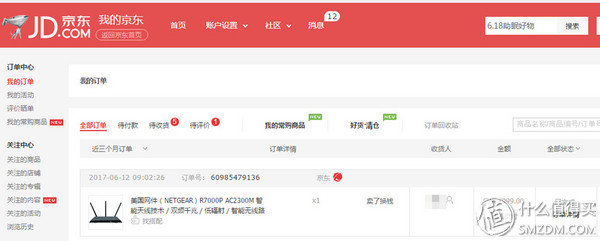

In particular, before I placed orders with East Columbia last week, I suddenly saw that Aunt Zhang’s friends had already dried out the NETGEAR R7000P evaluation. Although the appearance of the R7000P is the same as that of the R7000, there have been many improvements in the function. The NETGEAR R7000P was bought on the principle of buying new products instead of buying them. Lele alone is not as good as Lele (digging and digging together). This is not just the beginning. I will come to experience this week and submit it to Aunt Zhang’s platform for sharing.

Let me talk about my test route. I am not a big god of the router. I can only fumble with my life. Test section: First, open comment; Second, signal test; Third, bandwidth test; Fourth, system management;

First, open box articles

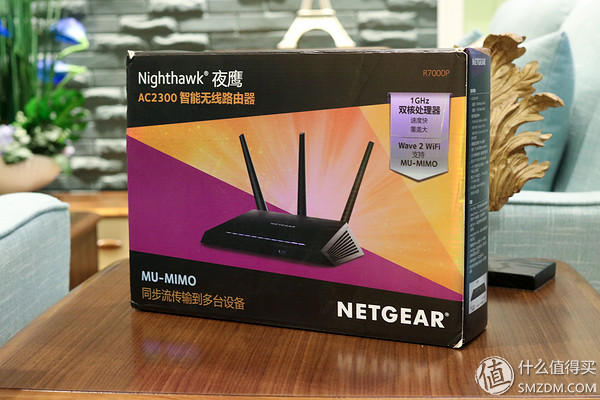

NETGEAR R7000P This package is very big, ah, the current streamlining on it is invisible. But the text description is simple and clear, equipped with a 1GHz dual-core processor, support MU-MIMO technology, can stream multiple devices synchronously (this function is sufficient to indicate that it is a tall on the route), R7000P main form has been presented on the packaging .

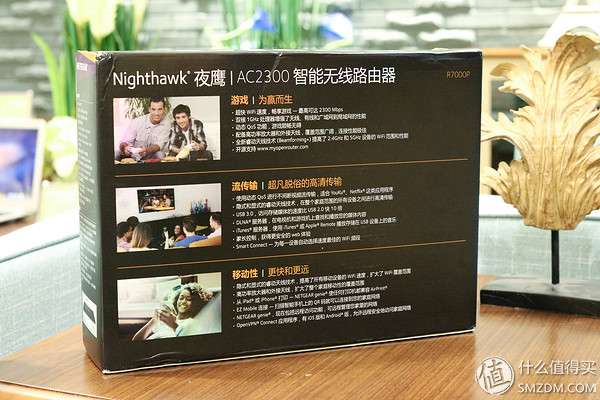

The back of the package is a practical function of introducing R7000P. Its main meaning is to play games more reliable.

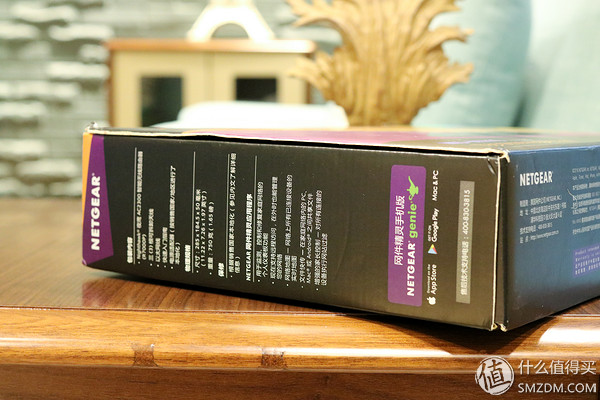

The side of the package is the size of the mesh R7000P, and its support for the NETGEAR ELEMENT APP.

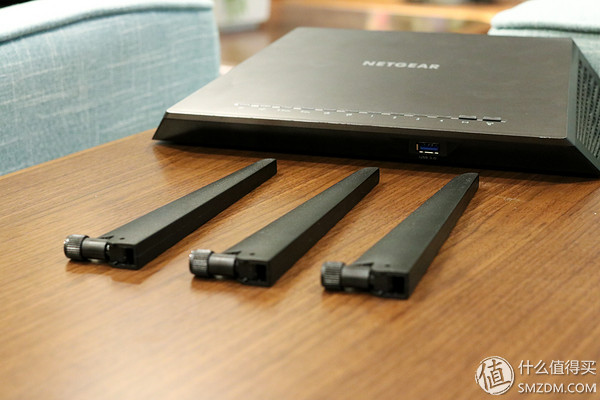

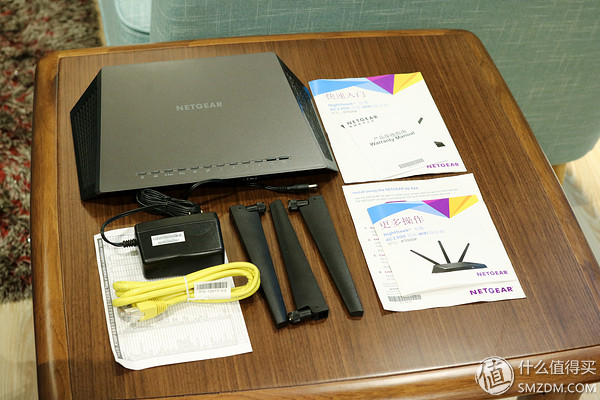

After opening the box all its accessories: mesh R7000P and three antennas, power adapter, manual, warranty card and so on.

In addition, there is a full English mobile phone management APP, but some do not understand.

The power supply of NETGEAR R7000P is a bit large, and the output voltage is 12V 3.5A. In addition, when it comes to network cable, it looks like many brands of routers do not send network cables. This kind of NETGEAR is also more conscience.

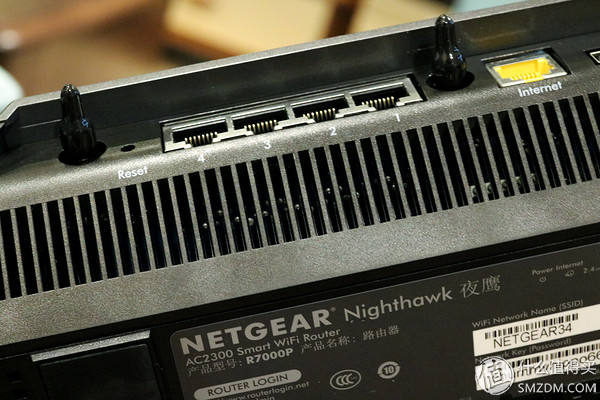

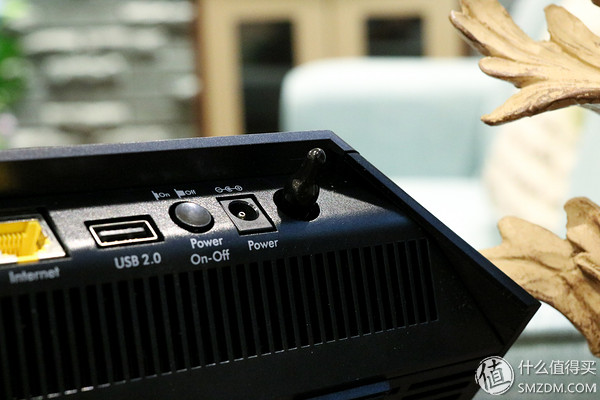

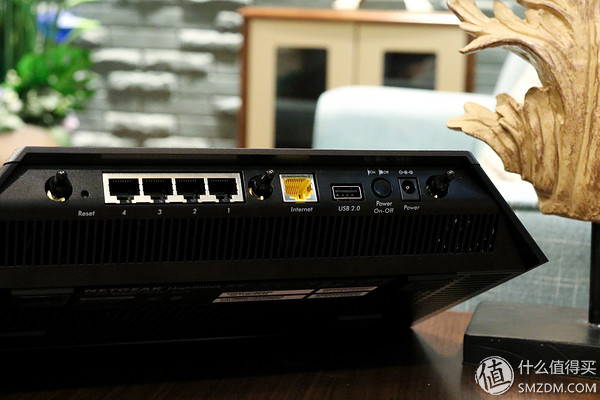

Look at all of its interfaces, four LAN and one yellow WAN port, standard USB2.0 interface, power switch, DC power interface; in addition, it uses a protective cover for all three interfaces.

There is a vent below the interface, vaguely visible inside the circuit board.

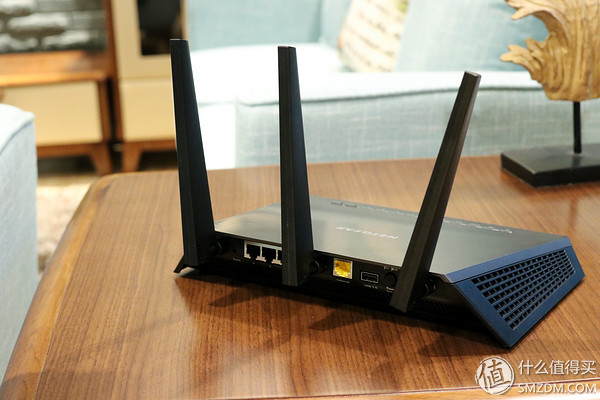

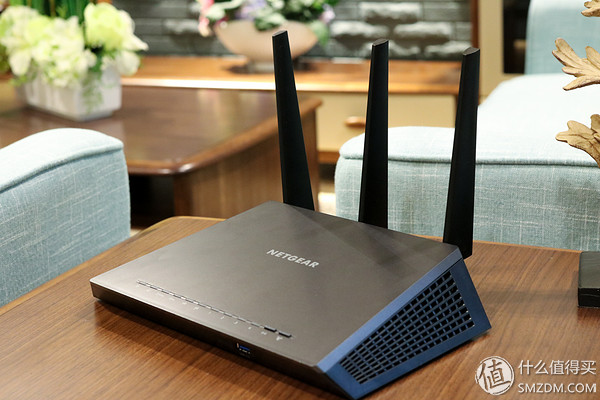

Like the NETGEAR R7000 I saw earlier, three antenna designs, but the wireless transmission capacity reached AC23000. Next, show the host's style:

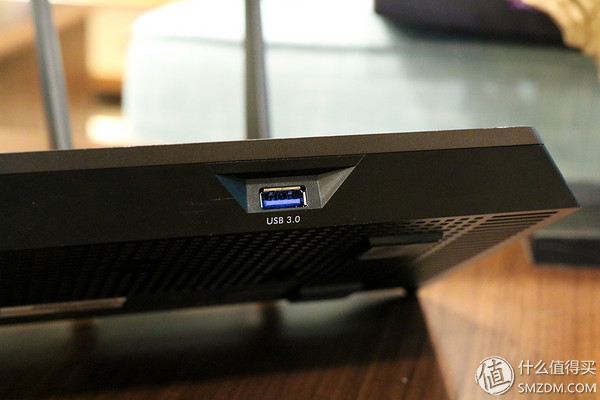

I actually did not see, in front of the design of a USB3.0 interface.

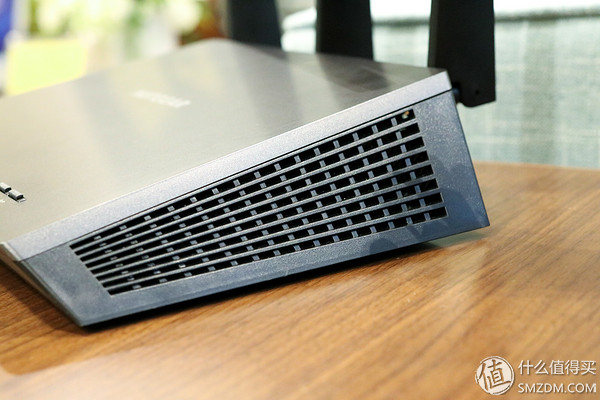

Thermal vents on the side of the host

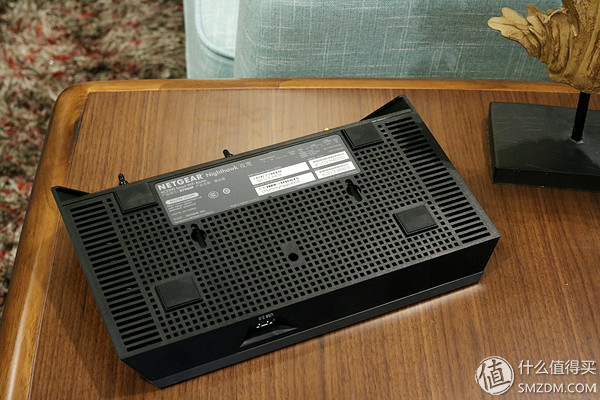

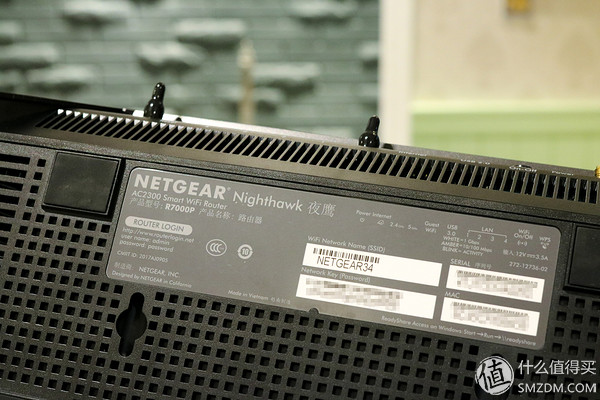

The back of the NETGEAR R7000P was set up with many airtight holes, four non-slip pads, and a wall-designed nail hole. The final product model description.

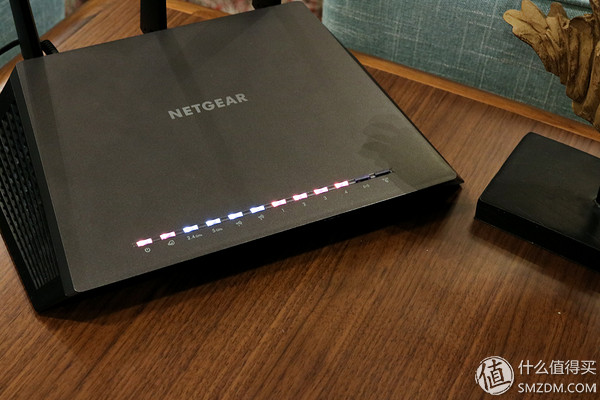

After power-on, the indicator of the R7000P NETGEAR will light up. The two rightmost are the keyboard: WiFi signal switch and one-button WPS connection.

Second, the signal test

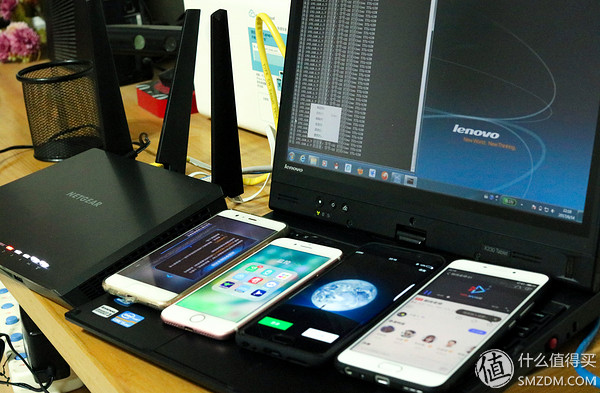

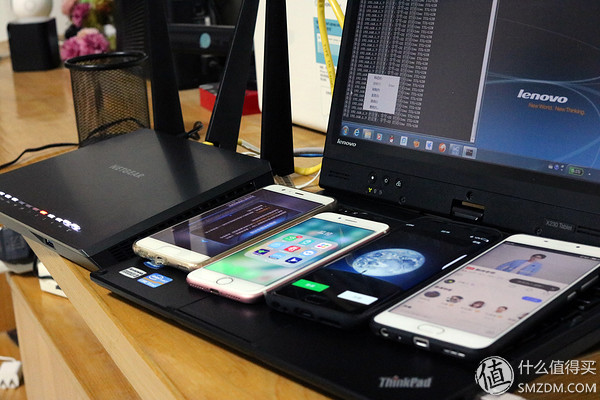

Here to talk about the highlights of NETGEAR R7000P, it has one more MU-MIMO technology than R7000, which is a great help for users with more network access devices. In the past, ordinary routers were basically multi-tagged and single-tagged on the signal. That is, after a wireless router accesses N devices, it needs to wait in line when processing the sending and receiving tasks. This is like a highway that is a single lane back and forth. If the car is too much, it will be slow, and it may be congested. With MU-MIMO technology is not the same, simply that it is multi-connection multi-tasking, a speed highway repaired N lanes, the speed is much faster.

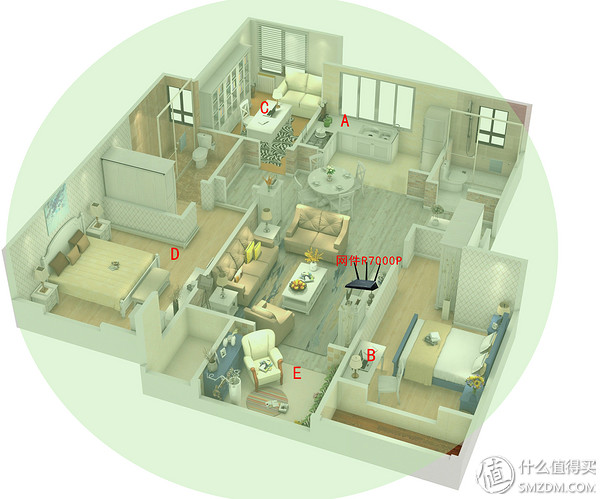

After understanding the MU-MIMO technology, it is necessary to test the signal of the NETGEAR R7000P. Test environment, 120-square-foot house, put net-ware R7000P on the living room TV cabinet, and then test the signals of A, B, C, D, E five points:

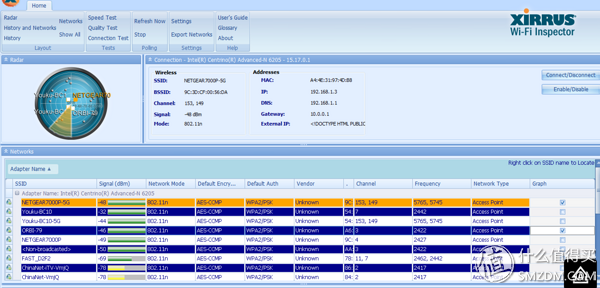

Test equipment 1, tinkpad X230T, equipped with windows7 64-bit operating system

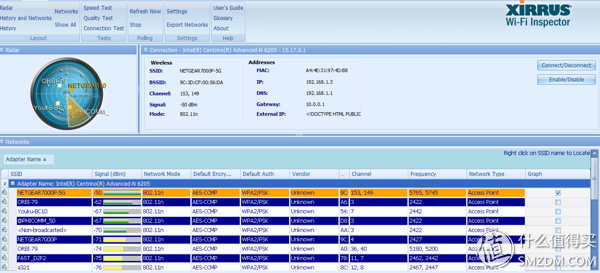

Signal condition of point A: 5G signal is -48, 2.4G is -49

Signal condition of point B: 5G signal is -50 and 2.4G is -43

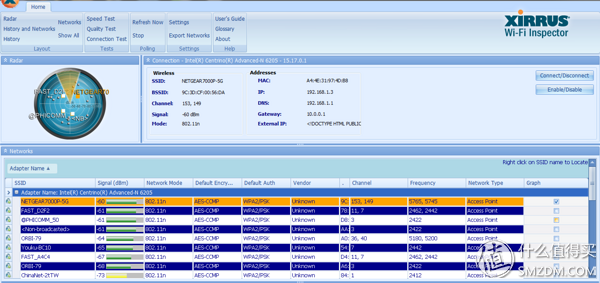

C signal conditions: 5G signal is -60, 2.4G is -79

Signal condition of D point: 5G signal is -50, 2.4G is -71

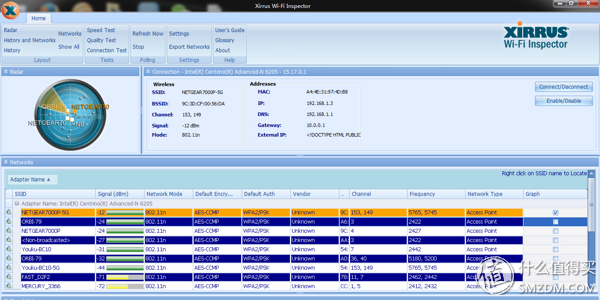

E point signal condition: 5G signal is -12, 2.4G is -24

Judging from the results of the laptop test, this netgear R7000P is very different from the ordinary router, its 5G signal is much stronger than the 2.4 signal on the wall. Previously also heard that others said that the use of high-end routers in the signal to try to use 5G; Another saying is that some brands of 2.4 signal transmission power has a serious over-standard situation, so the signal is strong, and some big brands of transmission power should be Obey the relevant regulations, so the signal is weaker. In any case, such a 120-square-foot home can receive signals at every point is the main one.

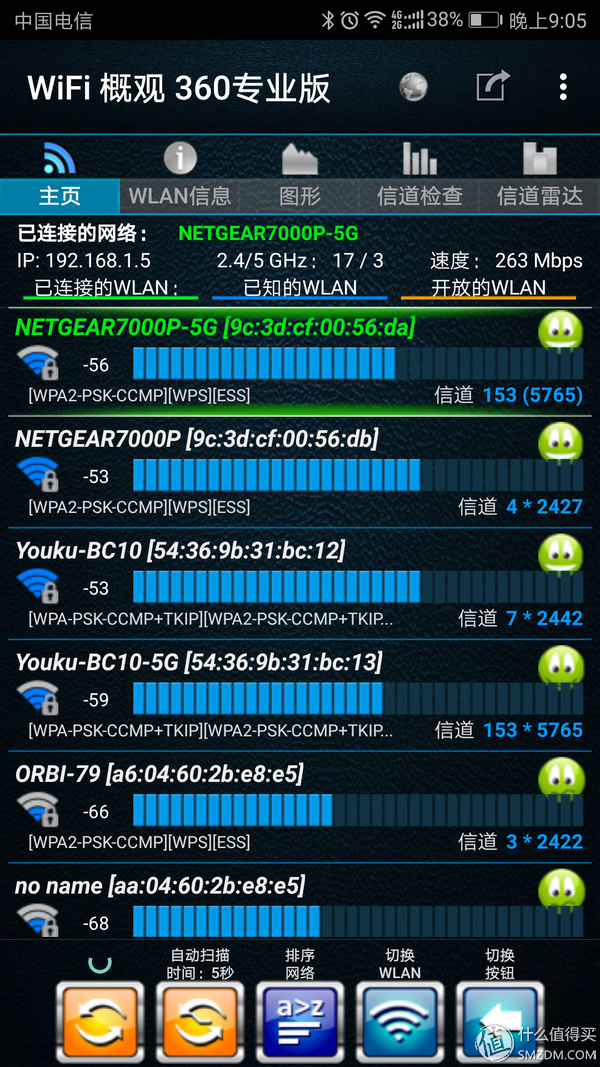

Test item 2, Huawei P10 mobile phone based on Android 7.0 EMUI

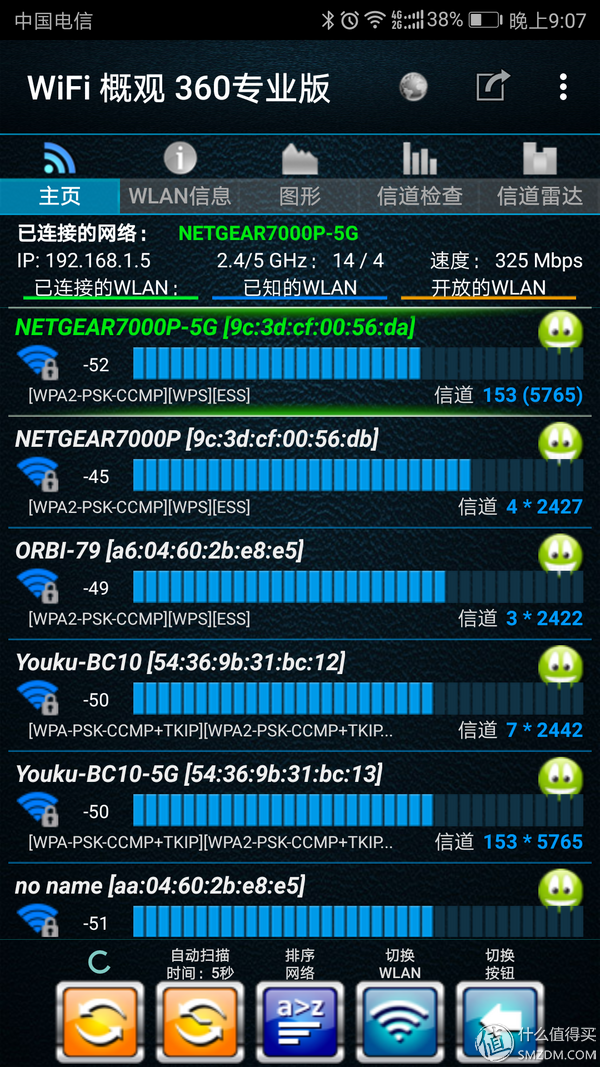

Signal condition of point A: 5G signal is -52 and 2.4G is -45

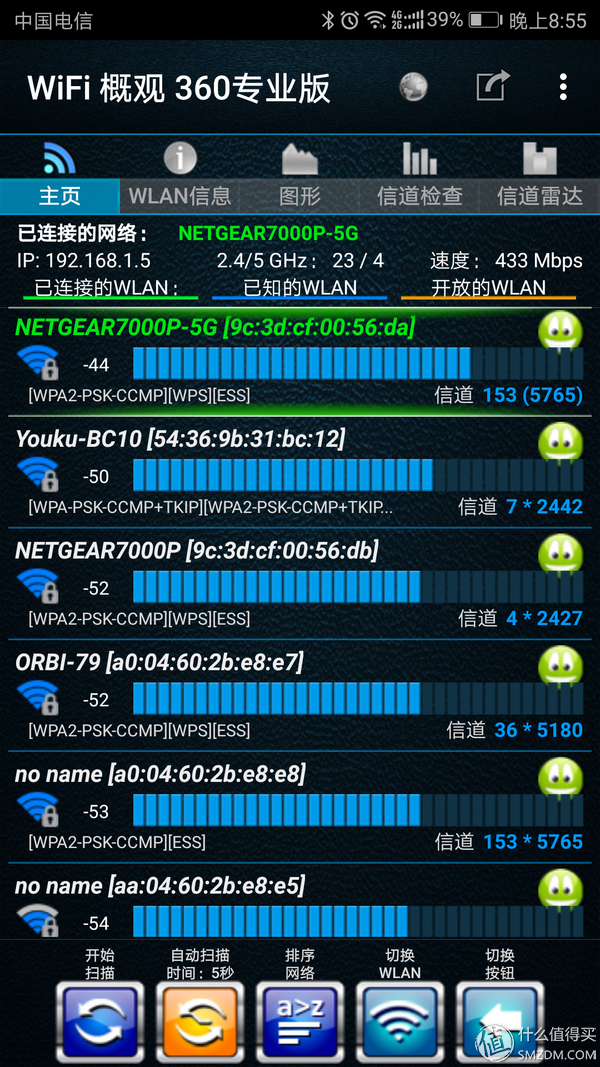

Signal condition of point B: 5G signal is -44, 2.4G is -52

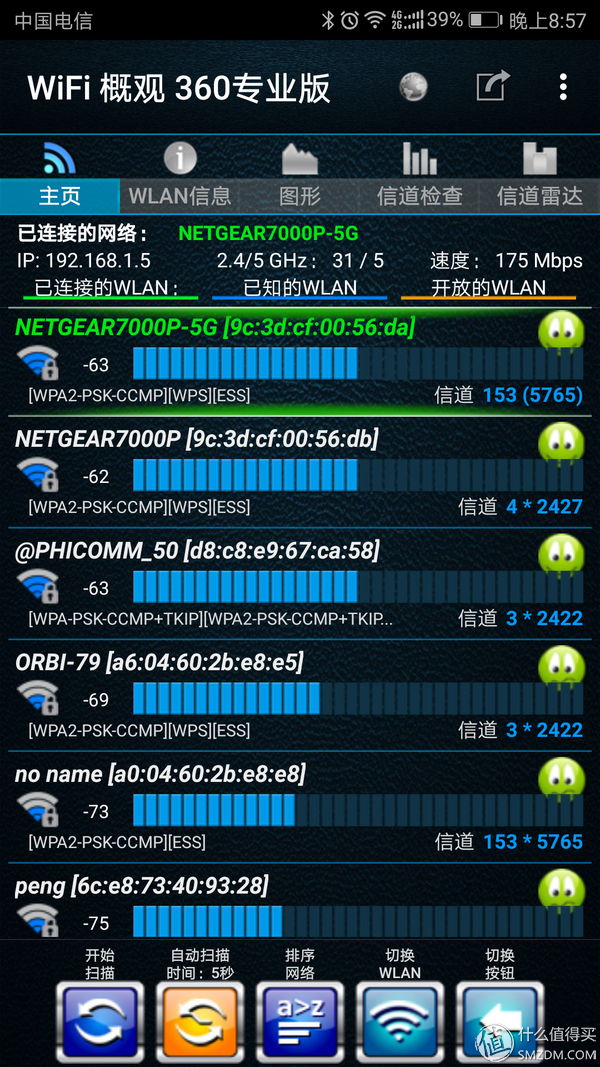

Signal condition at point C: 5G signal is -63 and 2.4G is -62

Signal condition of D point: -56 for 5G signal and -53 for 2.4G signal

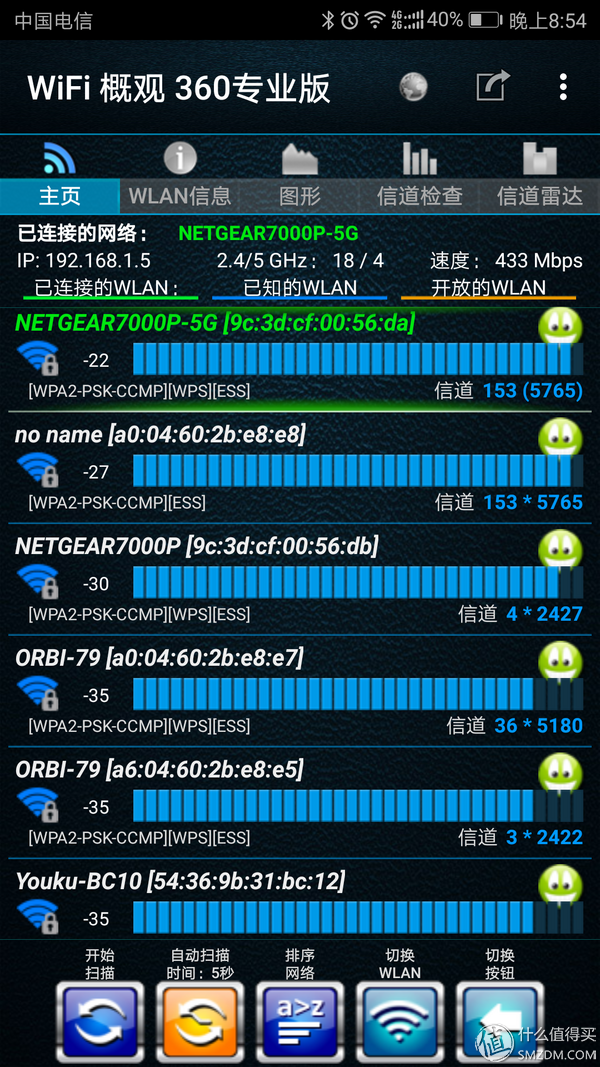

E-point signal conditions: 5G signal is -22, 2.4G is -27

According to the results of the mobile phone test, the NETGEAR R7000P performed quite well. However, according to the structural bureau, most of the test points are only one wall, but the signal passing through the wall cannot be compared with domestic ones. If this is inferred, if the home has two walls or more than two blocks, it may manifest itself. It will be a bit difficult, after all, wireless access equipment or mobile phones are mostly.

Third, the bandwidth test

It is said that practice is the standard for testing truth. At present, the most important connection terminal of the home wireless router is a mobile phone. Do not underestimate the small size of the mobile phone. The network bandwidth it occupies is very large. Of course, there are other smart devices in the home. The total bandwidth requirement of the NETGEAR R7000P is much higher. As already mentioned, its maximum transmission is 2300 Mbps. This is, of course, the approximate value of its dual-band wireless combination. However, the actual home desktop or NAS requires network access. How do we know its maximum bandwidth?

Test host: client tinypadX230T, equipped with windows 7 64-bit operating system (intel180G SSD hard disk) server is an assembly desktop, onboard Realtek PCIe Family Controller network card, and is equipped with windows 7 64-bit operating system (Kingston 120G SSD hard drive ).

Test Software: Client: IXCHARIST 6.7 X64

Server: ENDPOINT 7.3

Cable length: client 1 meter, server 3 meters

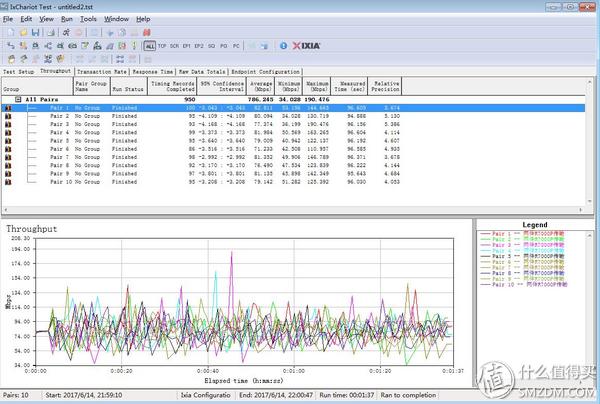

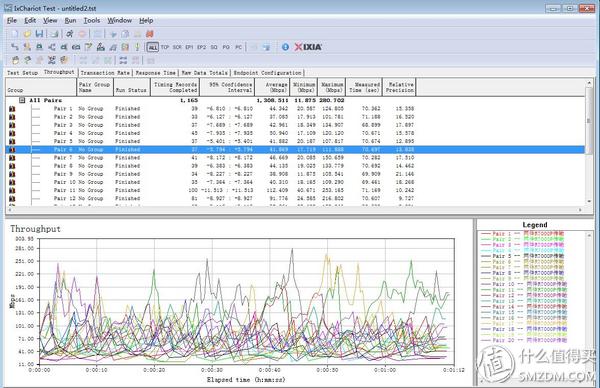

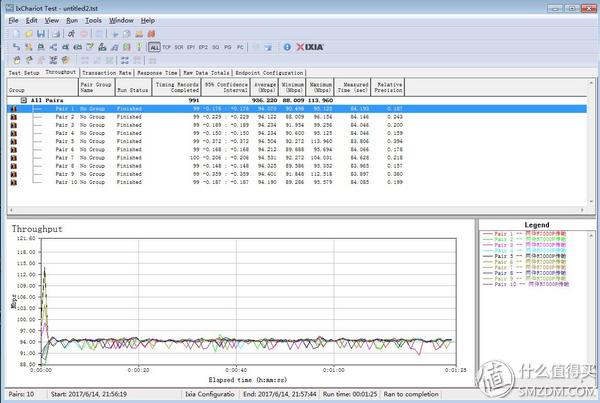

To do 10 downlinks, the average level obtained is 936 Mbps. This time the total bandwidth is 93.6 (both directional cards are G-class and their maximum theoretical transmission is 1000 Mpbs).

10 uplinks at 786 Mbps

The total of 10 on the 10th and 10th, with an average of only 1308Mpbs, it seems that the upstream speed dragged on. However, it is worth mentioning that from a technical point of view, the upward speed is constrained by the distribution of network operators, so there are still such ideals.

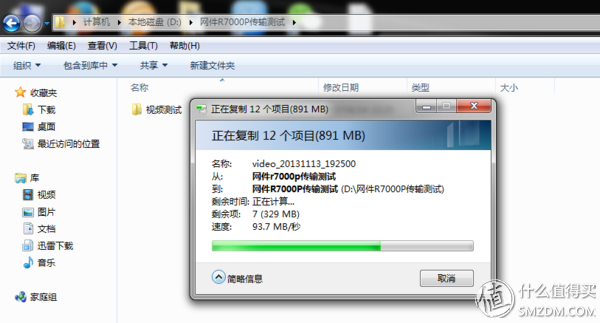

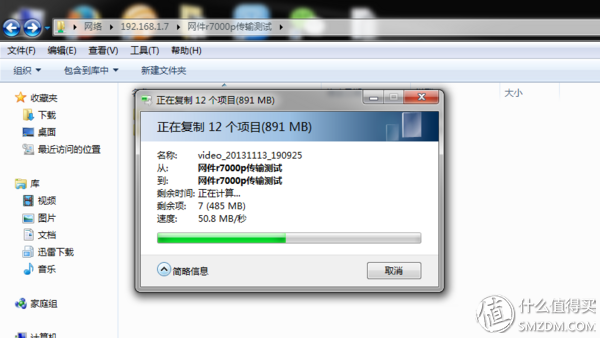

Simple to do a file speed of the internal network, 93.7MB/second, this speed is OK in the Gigabit network.

The speed of uploading to the server also performed well

Fourth, route management

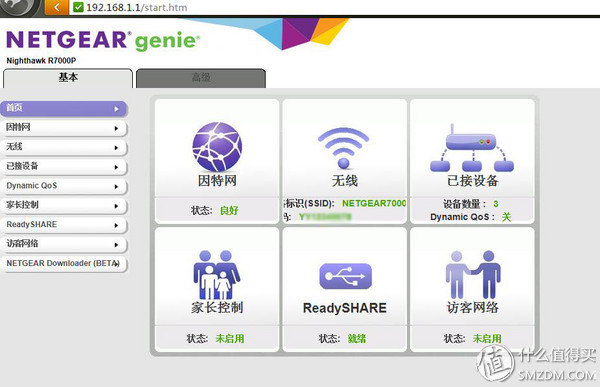

The router is powerful again and eventually requires manual management. There are two types of login methods for manual configuration of the R7000P netware. One is the IP address method, and the other is the use of the special domain name login management background. When it comes to netizen WEB management interface, can only be said to be simple and practical, there are not many places worthy of attention, because of its relatively simple configuration, coupled with previous experience, and I have not much to say here. , focus on the "Gadget Elf" mobile app.

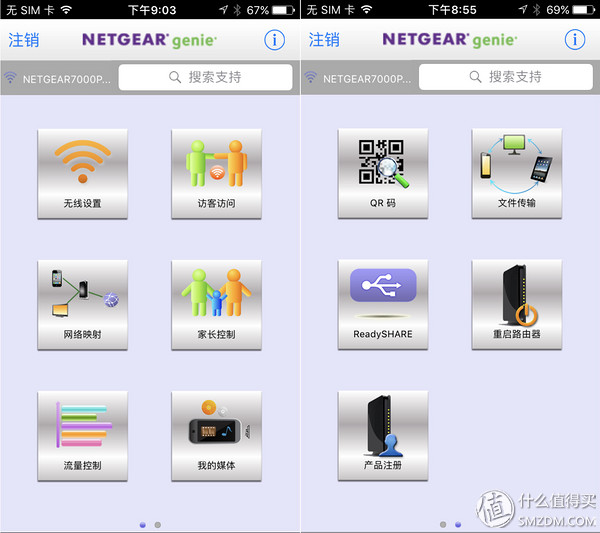

The NETGEAR Wizard is connected to the high-end routers of the NETGEAR. It is mainly the function management of the APP. The most important thing to do is to log in to the router's background management password before you can perform functional operations.

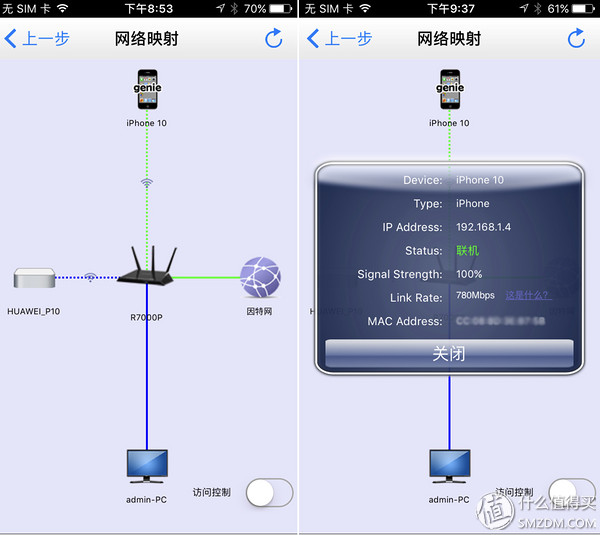

I first tried the "network mapping" function, it will display all smart devices connected to the R7000P. Any device can display its information: device name, networking status, signal strength, channel speed, network address, and so on.

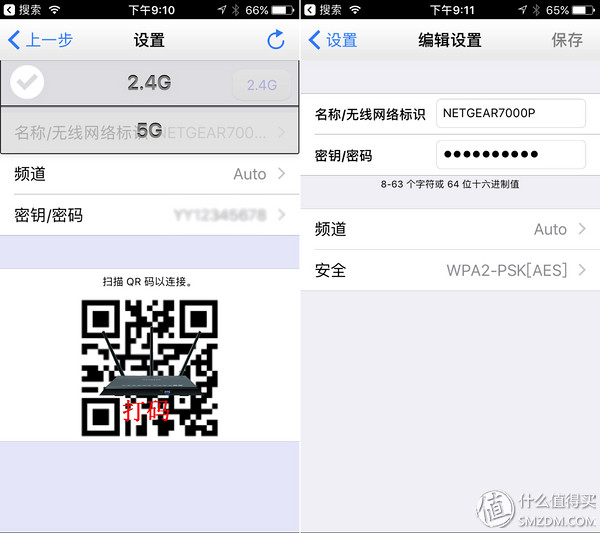

In the "Wireless Settings" item, you can change the SSID broadcast address or change the password. The key point is that it will automatically generate the password QR code: When other mobiles need to connect to the network, you can check the current password just by scanning.

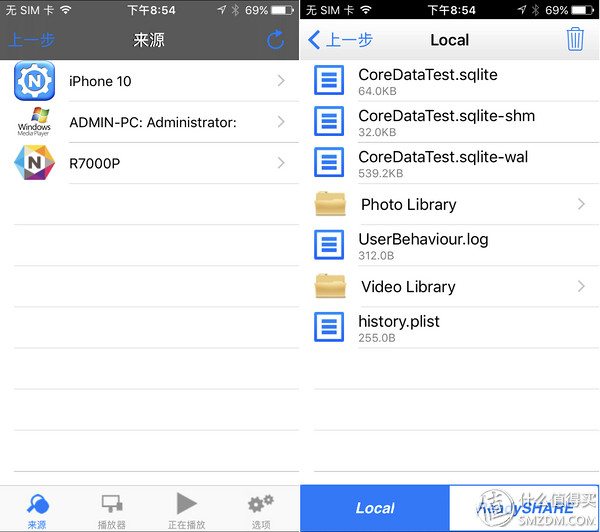

There are two more practical ones, namely "My Media" and "Ready SHARE". One is to play all the shared media streams of the current router (netware R7000P), and the other is to view the data of the storage devices plugged into the router USB. .

V. Personal summary

Although I first experienced the high-end routers in NETGEAR, I was not in the flagship route of NETGEAR. However, it is worthy of recognition that the signals of my family's 120-family units can be covered; Not bad, the up line can only be quite satisfactory (because of the constraints of network operators). In general, it is slightly higher than an ordinary Gigabit router. In addition, in terms of user management, supporting APP management is very user-friendly. In general, the original price of 1399 yuan, if you catch up to do activities when the discount is more worth looking forward to 999 yuan.

advantage:

1, the design is good, there is a sense of grade;

2, two USB storage interfaces, this is more practical, can be used as a streamlined NAS;

3, 5G signal performance is good, sometimes stronger than 2.4G;

4, support for MU-MIMO technology, the technology is only available with high-end routing, multi-device connection at least no congestion;

5, WPS plus a connection on the main panel, so that the operation is more simple;

6, the performance of the downlink bandwidth rate is good;

7, smart APP management can also save time;

Disadvantages:

1.2.4 Signal passing through the wall is not enough to force;

2. The uplink bandwidth rate is generally, but of course, the objective reason is that it is limited by the operator's constraints.

3, appearance and nets several other Nighthawk routing is almost the same, not easy to distinguish.
