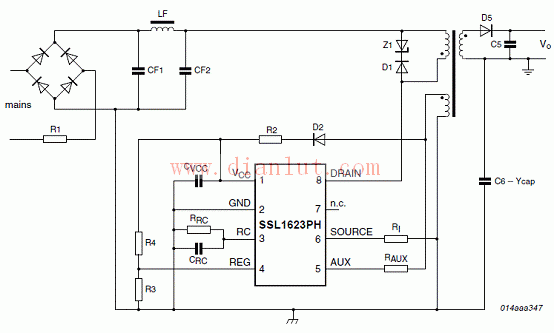

SSL1623PH application circuit diagram
The following is the circuit diagram of the SSL1623PH application circuit. This IC is widely used in power supply designs due to its advanced features and high efficiency. Here are some key features and benefits:
- Integrated Power Switch: 6.5 Ω and 650 V, ideal for high-voltage applications.
- Universal AC Mains Operation: Works efficiently from 80 V to 276 V, making it suitable for a wide range of power supplies.
- Adjustable Frequency: Offers flexibility in design to match different system requirements.
- RC Oscillator: Ensures stable regulation without being affected by load changes.
- Valley Switching: Reduces switching losses for improved efficiency.
- Adjustable Overcurrent Protection: Helps prevent damage from unexpected current surges.
- Undervoltage and Temperature Protection: Enhances system reliability under varying conditions.
- Short-Circuit Winding Protection: Prevents damage during fault conditions.
- Safe Restart Mode: Automatically resets after system faults, improving user experience.
- Simple Application: Supports both primary and secondary (opto) feedback for easy integration.
- 16-Pin DIP Package: Offers a compact and reliable solution for PCB layouts.
